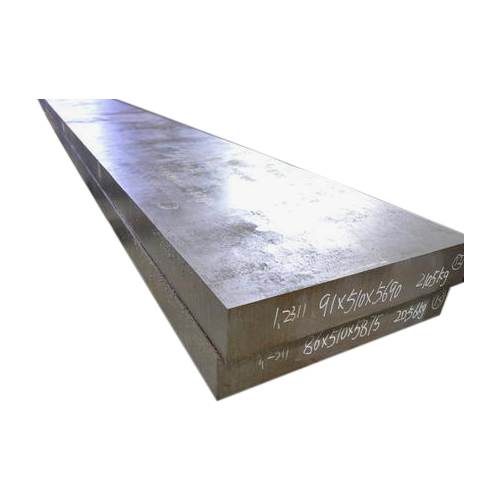

Plastic-mould-steel-P20-s
P20+S steel have great cutting properties, common use plastic mold, Injection molding and die mold. The P20+S steel materials delivery condition is according to various client necessities, normal conveyance condition as Pre-hardness, hardness 28-34 HRc.
P20+S steel is a pre-hardened CrMnMoS-alloyed tool steel for the development of plastic molds with lower surface prerequisites alluding to e.g. polishability and photoetchability. 2312 is portrayed by fantastic machinability and high dimensional stability.
OUR PRODUCTS
Chemical Composition
| Element | Min | Max |
|---|---|---|
| Carbon, C | 0.35 | 0.45 |
| Manganese, Mn | 0.40 | 1.60 |
| Silicon, Si | 0.30 | 0.50 |
| Molybdenum, Mo | 0.15 | 0.25 |
| Chromium, Cr | 1.80 | 2.00 |
| W | — | — |
| Vanadium, V | — | — |
| Co | — | — |
| Sulfur, S | 0.05 | 0.10 |
| Phosphorous, P | — | 0.030 |
Physical Properties
| Property | Metric |
|---|---|
| Density | 7.85 kg/cm³ |
Mechanical Properties
| Property | Metric | Imperial |
|---|---|---|
| Izod impact unnotched | 20.0 J | — |
| Poisson’s ratio | 0.27–0.30 | 0.27–0.30 |
| Elastic modulus | 190–210 GPa | 27557–30457 ksi |
Thermal Properties
| Property | Conditions T (°C) Treatment |
|---|---|
| Thermal expansion: 12 x 10-6/ºC | 20-100 |
FEATURES :
- Heat Treatment
- Forging
- Annealing
- Tempering
- Nitriding
