Plastic-mould-steel-P20
P20 Steel Plate Material is an adaptable, low-composite tool steel that is described by great durability at moderate quality levels. The extraordinary reason mould steel P20 steel plate is usually utilized for plastic infusion mould holes and tooling and die casting dies for zinc.
P20 mould steel plate material is commonly sold in the pre-hardened condition at a hardness of roughly 300 HBW.P20 tool steels are nitride or carburized.

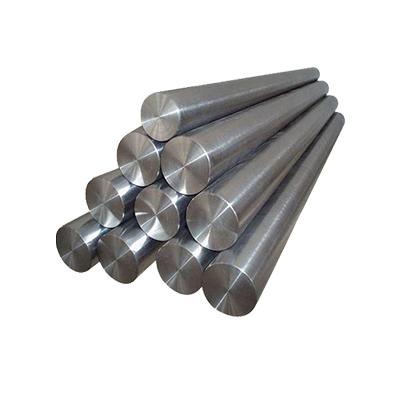

These P20 mould steel materials steels are fit for being machined into complex and large dies and moulds. Material P20 steel plate and round bars are mostly utilized as a part of the carburized condition. The presence of chromium and nickel enhances the toughness and hardness of mould steel P20 grade material.
OUR PRODUCTS
Chemical Composition
| Element | Min | Max |
|---|---|---|
| Carbon, C | 0.28 | 0.40 |
| Manganese, Mn | 0.60 | 1.00 |
| Silicon, Si | 0.20 | 0.80 |
| Molybdenum, Mo | 0.30 | 0.55 |
| Chromium, Cr | 1.40 | 2.00 |
| Sulfur, S | — | 0.03 |
| Phosphorous, P | — | 0.03 |
PHYSICAL PROPERTIES
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.85 g/cc | 0.284 lb/in³ |
Mechanical PROPERTIES
| Properties | Metric | Imperial |
|---|---|---|
| Hardness, Brinell (typical) | 300 | 33 |
| Hardness, Rockwell C (typical) | 30 | 30 |
| Tensile strength, ultimate | 965–1030 MPa | 140,000–150,000 psi |
| Tensile strength, yield | 827–862 MPa | 120,000–125,000 psi |
| Elongation at break (in 50 mm (2″)) | 20.0% | 20.0% |
| Compressive strength | 862 MPa | 125,000 psi |
| Charpy impact (V-Notch) | 27.1–33.9 J | 20.0–25.0 ft-lb |
| Poisson’s ratio | 0.27–0.30 | 0.27–0.30 |
| Elastic modulus | 190–210 GPa | 27,557–30,457 ksi |
Thermal PROPERTIES
| Properties | Conditions T (°C) Treatment |
|---|---|
| Thermal Expansion 12.8 x 10-6/ºC | 20-425 |
FEATURES :
- Heat Treatment
- Forging
- Welding
- Forming
- Hardening
- Cold Working
