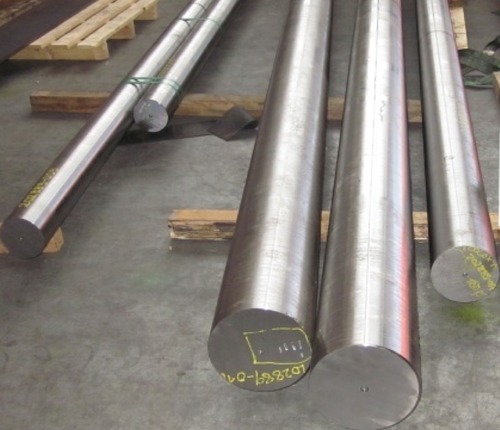

HOT WORK TOOL STEEL H11

Chromium hot-work device steels are assigned as gathering H steels as indicated by the AISI classification system. This arrangement of steels begin from H1 to H19. The most usually utilized chromium hot-work steels are H11, H12, and H13, which can be air solidified in 150 mm thick segments. The steels are subjected to insignificant twisting during hardening because of their adjusted alloy content. The tool delivered from chromium hot-work steels can be cooled utilizing water without damage as these steels have low carbon and compound substance.H11 chromium hot-work steels, which have low carbon substance and great toughness. These steels can be deep hardened by heat treatment and air-quenching.

Chemical Composition

Element Content (%)
Carbon,C 0.33-0.43
Manganese, Mn 0.20-0.50
Silicon, Si 0.80-1.20
Molybdenum, Mo 1.10-1.60
Chromium,Cr 4.75-5.50
Vanadium, V 0.30-0.60
Copper,Cu 0.25
Phosphorous, P 0.03
Sulfur,S 0.03
Iron, Fe Balance

PHYSICAL PROPERTIES

Properties Metric Imperial
Density 7.81 g/cm3 0.282 lb/in3
Melting point 1427°C 2600°F

MECHANICAL PROPERTIES

Properties Metric Imperial
Hardness, Rockwell C (air cooled from 982°C, 45 mins) 52.5 52.5
Hardness, Rockwell C (air cooled from 1010°C, 45 mins) 56 56
Hardness, Rockwell C (air cooled from 1038°C, 45 mins) 57 57
Modulus of elasticity 207 GPa 30000 ksi
Modulus of elasticity (@538°C/1000°F) 159 GPa 23000 ksi
Modulus of elasticity (@204°C/400°F) 190 GPa 27500 ksi
Charpy impact (V-notch; air cooled from 1010°C;535°C temper temperature) 13.6 J 10.0 ft-lb
Charpy impact (V-notch; air cooled from 1010°C;650°C temper temperature) 27.1 J 20.0 ft-lb
Charpy impact (V-notch; air cooled from 1010°C;370°C temper temperature) 33.9 J 25.0 ft-lb
Machinability (1% carbon steel) 75.0 – 80.0% 75.0 – 80.0%
Poisson’s ratio 0.27-0.30 0.27-0.30

THERMAL PROPERTIES

Properties Metric Imperial
Thermal expansion (@20-100ºC/68-212ºF) 11.9 x 10 -6
Thermal conductivity (@100ºC/212ºF) 42.2 W/mK 292.9 in/hr.ft².°F
