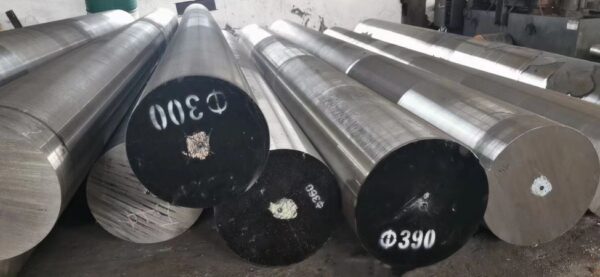

case-hardening-steel-EN36
EN36 is a 3% nickel, chromium, molybdenum grade. Carburised EN36 gives a hard case with a strong core, whilst holding a remarkable level of durability.
EN36(carburized) is utilized widely by all industry areas for segments and shafts requiring high surface wear resistance, high center quality and effect properties. Normal uses are: Heavy Duty Bushings, Collets, Conveyor Pins, Heavy Duty Gears, King Pins, Ring Gears, Sprockets, Shafts etc.
OUR PRODUCTS
Chemical Composition
| Element | Min | Max |
|---|---|---|
| Carbon, C | 0.12 | 0.18% |
| Manganese, Mn | 0.30 | 0.60% |
| Silicon, Si | 0.10 | 0.35% |
| Nickel, Ni | 3.00 | 3.75% |
| Chromium, Cr | 0.60 | 1.10% |
| Sulfur, S | — | 0.50% |
| Phosphor, P | — | 0.050% |
Mechanical PROPERTIES
| Tensile Strength N/mm² | Elongation % | Impact Izod J | Impact KCV J | Hardness HB | Reduction of Area % |
|---|---|---|---|---|---|
| 1100 | 15 | 40 | 35 | 341 | 50 |
FEATURES :
- Heat Treatment
- Tempering
- Softening
