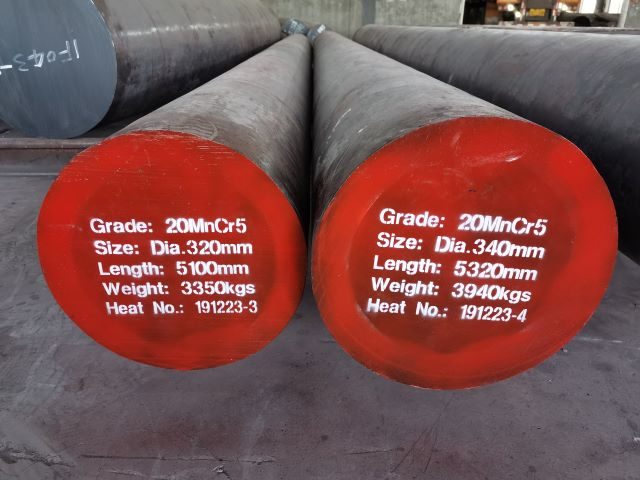

case-hardening-steel-20MnCr5

16MnCr5 is a low alloy chromium-manganese case-hardening steel that offers exceptional mechanical properties, making it highly suitable for a wide range of engineering and industrial applications. This steel is known for its ability to undergo carburization, a process that creates a hard, wear-resistant outer case while maintaining a tough and durable core. This unique combination of a hard surface and a resilient core ensures that components made from 16MnCr5 can withstand heavy loads, surface wear, and fatigue under demanding operating conditions.

Chemical Composition

Element Min Max
Carbon, C 0.14 0.19
Manganese, Mn 1.00 1.03
Silicon, Si 0.10 0.35
Nickel, Ni
Molybdenum, Mo
Chromium, Cr 0.80 1.10
Sulfur, S 0.05
Phosphorous, P 0.05

PHYSICAL PROPERTIES

Properties Metric Imperial
Density 7.85 g/cc 0.284 lb/in³

Mechanical PROPERTIES

Brinell hardness (HBW): (+S) 255
Brinell hardness (HBW): (+A) 217
Brinell hardness (HBW): (+TH) 170 – 217
Brinell hardness (HBW): (+FP) 152 – 201
Brinell hardness (HBW): (+N) 140 – 201

FEATURES :
