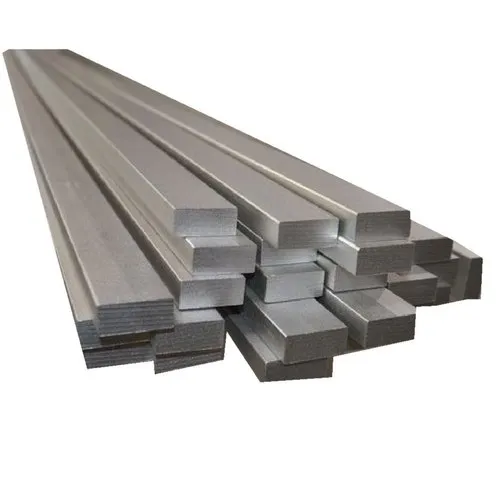

EN8 is an exceptionally prominent grade of through-hardening medium carbon steel, which is promptly machinable in any condition. EN8 likewise know as 080M40. Unalloyed medium carbon steel. EN8 is a medium quality steel, great rigidity. Appropriate for shafts, focused on pins, studs, keys and so forth. EN8 in its warmth treated structures has great homogenous metallurgical structures, giving reliable machining properties. It is therefore prescribed that bigger sizes of EN8 are supplied in the untreated condition, and that any warmth treatment is done after initial stock removal. This should achieve better mechanical properties towards the core.
Carburizing Bearing Steel
High Carbon Chromium Bearing Steel
Ball Bearing Rings
| Element | Min | Max |
|---|---|---|
| Carbon, C | 0.35 | 0.45% |
| Manganese, Mn | 0.60 | 1.0% |
| Silicon, Si | 0.5 | 0.35% |
| Sulfur, S | -.– | 0.6 |
| Phosphorous, P | -.– | 0.6 |
| Max Stress | 700–850 N/mm 2 | |
|---|---|---|
| Yield Stress | 465 N/mm² Min | (Up to 19mm LRS) |
| 0.2% Proof Stress | 450 N/mm² Min | (Up to 19mm LRS) |
| Elongation | 16% Min | (12% if Cold Drawn) |
| Impact KCV | 28 Joules Min | (Up to 19mm LRS) |
| Hardness | 201–255 Brinell |
